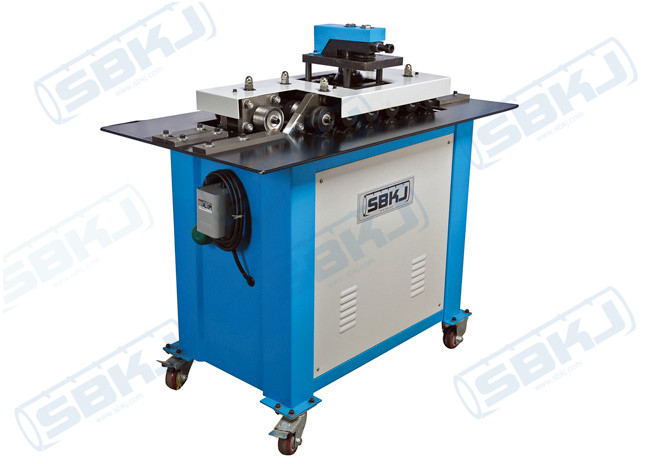

Lockformer



Partial view


Technology Data

Type SBLC-12/15 SBLC-12R/15R SBLC-12DR/15DR SBLC-12C/15C SB-R12/15
Thickness 1.2-1.5mm 1.2/1.5mm 1.2/1.5mm 1.2/1.5mm 1.0/1.2mm
Forming shape
Power 1.5/2.2kw 1.5/2.2kw 1.5/2.2kw 1.5/2.2kw 1.5/2.2kw
Weight 210/280kg 230/290kg 230/300kg 150/163kg 150/163kg
Dimension 1050×570×770mm 1050×570×920mm 1050×570×920mm 840×440×780mm 840×440×780mm
1150×610×800mm 1150×610×980mm 1150×610×980mm 1040×440×780mm 1040×440×780mm
