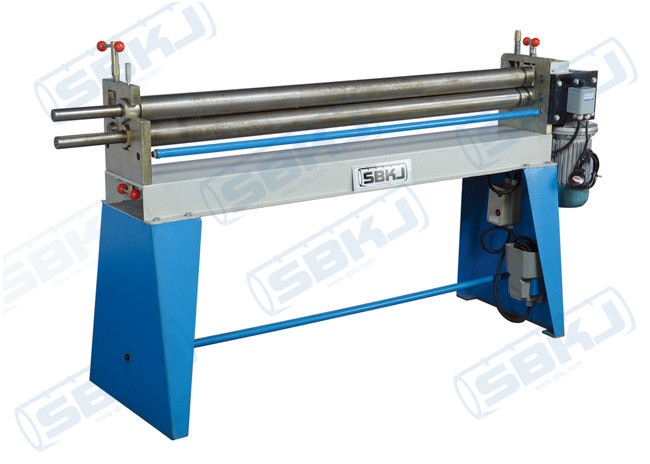

Electrical-Driven Bending Machine

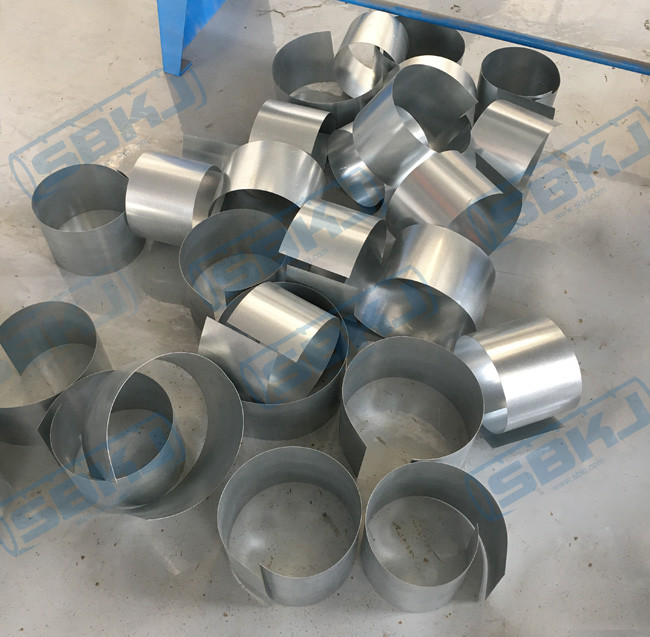

Partial view



Technical Data
Type SBW11G-2×1020 SBW11G-1.5×1270 SBW11G-1.2×1530
Max. Thickness 2mm 1.5mm 1.2mm
Max. Width 1000mm 1300mm 1530mm
Yield limit 245mm 245mm 245mm
Min. diameter 100mm 100mm 100mm
Top roller diameter 73mm 73mm 73mm
Bottom roller diameter 73mm 73mm 73mm
Power 1.5kw 1.5kw 1.5kw
Weight 220kg 240kg 280kg
Dimension 1540×550×1110mm 1780×550×1110mm 2040×550×1110mm
