Spiral Tubeformer SBTF-1500C

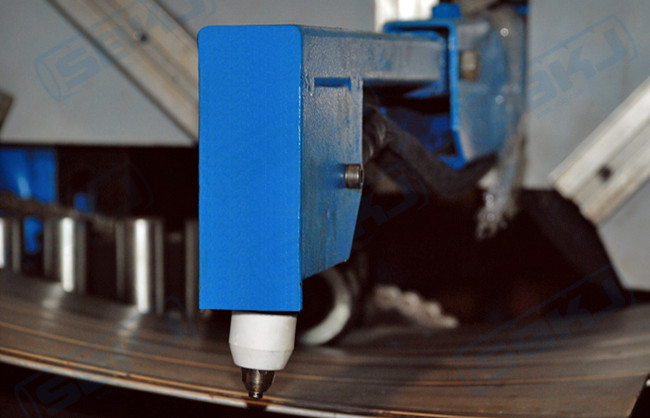

Partial view


Technical data
Thickness of strip Galvanized steel 0.4 -2.0mm
Stainless steel  0.4-1.2mm
Width of strip Standard 137mm
Working speed 1-30m/min
Cutting system Plasma cutler / Saw blade cutter
Lock seam Outside lock seam, on the inside on request
Power 16.5Kw
Weight 2300kg
Dimension 3200 mm×1700 mm×1950mm
